This article applies to:

  • Product: CoCounsel,HighQ
  • Subject: Add-in

CoCounsel for Microsoft Outlook (Gov)

For Microsoft Entra ID and Microsoft 365 global and Exchange administrators in Government cloud tenants (GCC, GCC High, DoD).

Overview

How this add-in gets installed
Manifest-based deployment is the only supported installation method for
CoCounsel for Microsoft Outlook (Gov)
 in Microsoft Government cloud tenants (GCC, GCC High, and DoD). No AppSource or Marketplace listing exists in any sovereign cloud. This is a Microsoft platform constraint that applies to all vendors' add-ins in these environments, not a Thomson Reuters limitation.
Instead, Thomson Reuters provides your organisation with the add-in manifest file, which your Entra ID administrator or IT administrator uploads and manages using your organisation's administrative tools. Thomson Reuters cannot install the add-in in your tenant on your behalf. All steps described in this guide must be completed by your administrators within your own Microsoft 365 Government tenant.
Before proceeding, review and follow your organisation's internal process for approving, installing, and managing new applications in your environment. The steps in this guide assume that review and approval have already taken place.
note
Microsoft offers more than one valid way to deploy the add-in. You can upload and assign the manifest from either the Microsoft 365 admin center (Integrated apps) or the Microsoft Entra admin center. You can manage the permissions of the resulting enterprise application from either the Enterprise applications pane or the App registrations pane in the Microsoft Entra admin center. This guide shows the most common path through each admin center. Your team might already have an internal standard for one of them, and Microsoft supports both.
note
Send your Government tenant ID (Microsoft Entra tenant ID, in GUID format) to your Thomson Reuters program team when you request the manifest file. This lets Thomson Reuters confirm the correct app registration and consent endpoint for your specific tenant before you deploy.

Prerequisites

Before you start, make sure that you have the following:
  • Admin access
    : You need Global Administrator, Exchange Administrator, or Cloud Application Administrator access to your Microsoft 365 Government tenant (GCC, GCC High, or DoD, as applicable).
  • The Gov manifest file
    : Thomson Reuters provides a Gov-specific manifest directly to your organisation. It differs from the commercial CoCounsel for Outlook manifest, it points to separate Government Microsoft Entra ID app registrations and Government-only service endpoints. To request the file, contact your Thomson Reuters support team. The file isn't published for download.
  • A deployment scope
    : Decide the deployment scope in advance, whether for yourself only (for testing), specific users or groups, or your entire organisation.
  • A flat security group, if you scope to a group
    : Confirm that the group lists user accounts directly. A nested group (a group that contains other groups) reports the deployment as successful but doesn't reach anyone in the nested membership. This is the most common reason a deployment looks complete but the add-in never appears for users.

Capabilities and Limitations

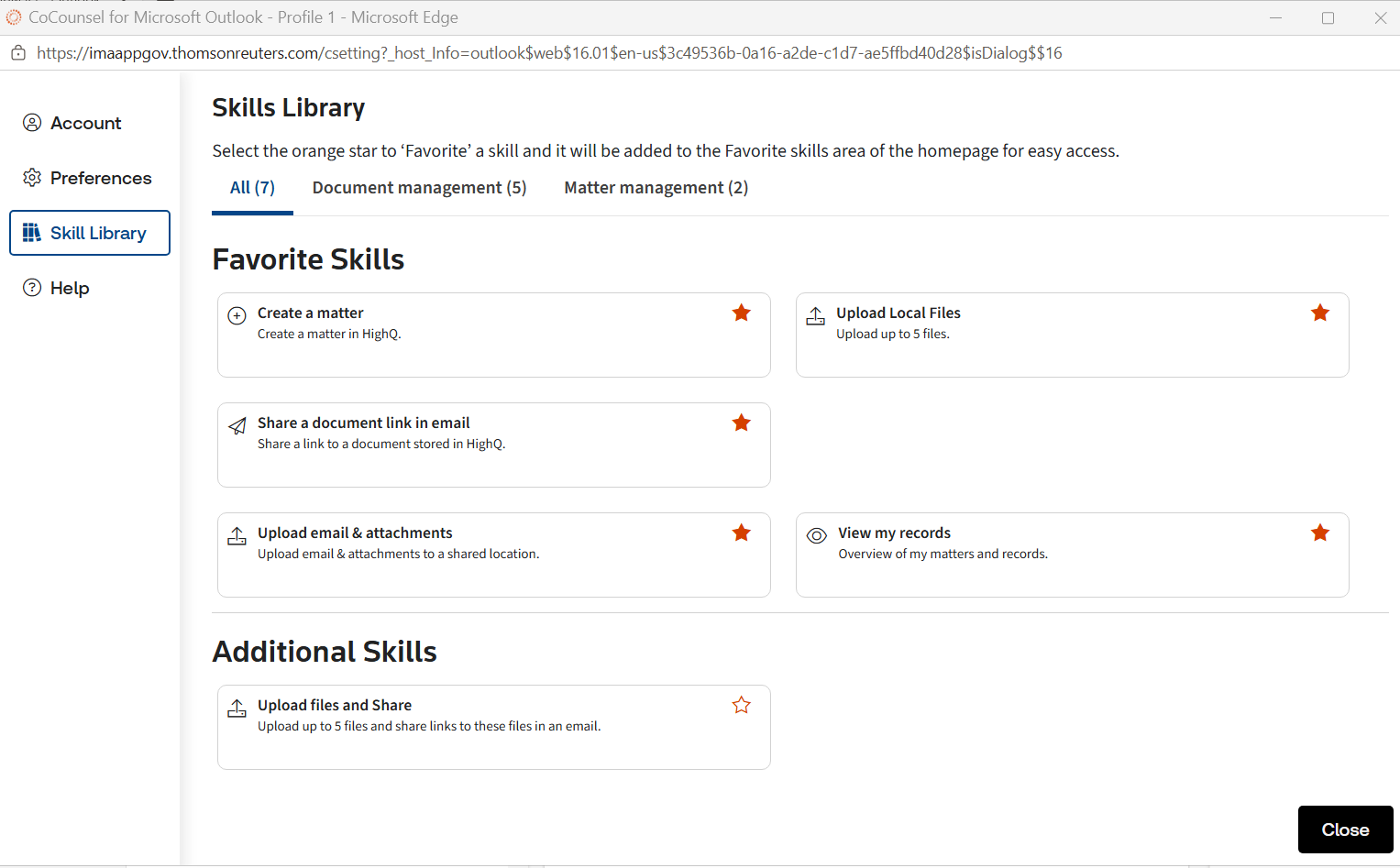

What's included in the Gov application
CoCounsel for Microsoft Outlook (Gov) supports HighQ features only. The add-in presents these features as a Skill Library. CoCounsel AI drafting and skills and Legal Tracker matter intake are available in the commercial version of the add-in, but they
aren't enabled
 in the Gov application.
Matter management
Feature
Description
Create a matter
Create a matter in HighQ.
View my records
View an overview of your matters and records.
Document management
Feature
Description
Upload Local Files
Upload up to 5 files to HighQ.
Upload email & attachments
Upload an email and its attachments to a shared location.
Upload files and Share
Upload up to five files and share links to those files in an email.
Share a document link in email
Share a link to a document that's stored in HighQ.
What's not included in the Gov application
  • CoCounsel AI drafting & skills
  • Legal Tracker matter intake
  • Westlaw / Practical Law lookups

Deploy the add-in to your organisation

Choose one of the two methods. Both of them install the same manifest and produce the same result.
Deploy via the Microsoft 365 Admin Center
  1. Sign in to the Microsoft 365 Admin Center (Government instance).
    Use an account with Global or Exchange administrator access, at your Government admin portal (for example, admin.microsoft.us or your tenant's GCC High or DoD equivalent).

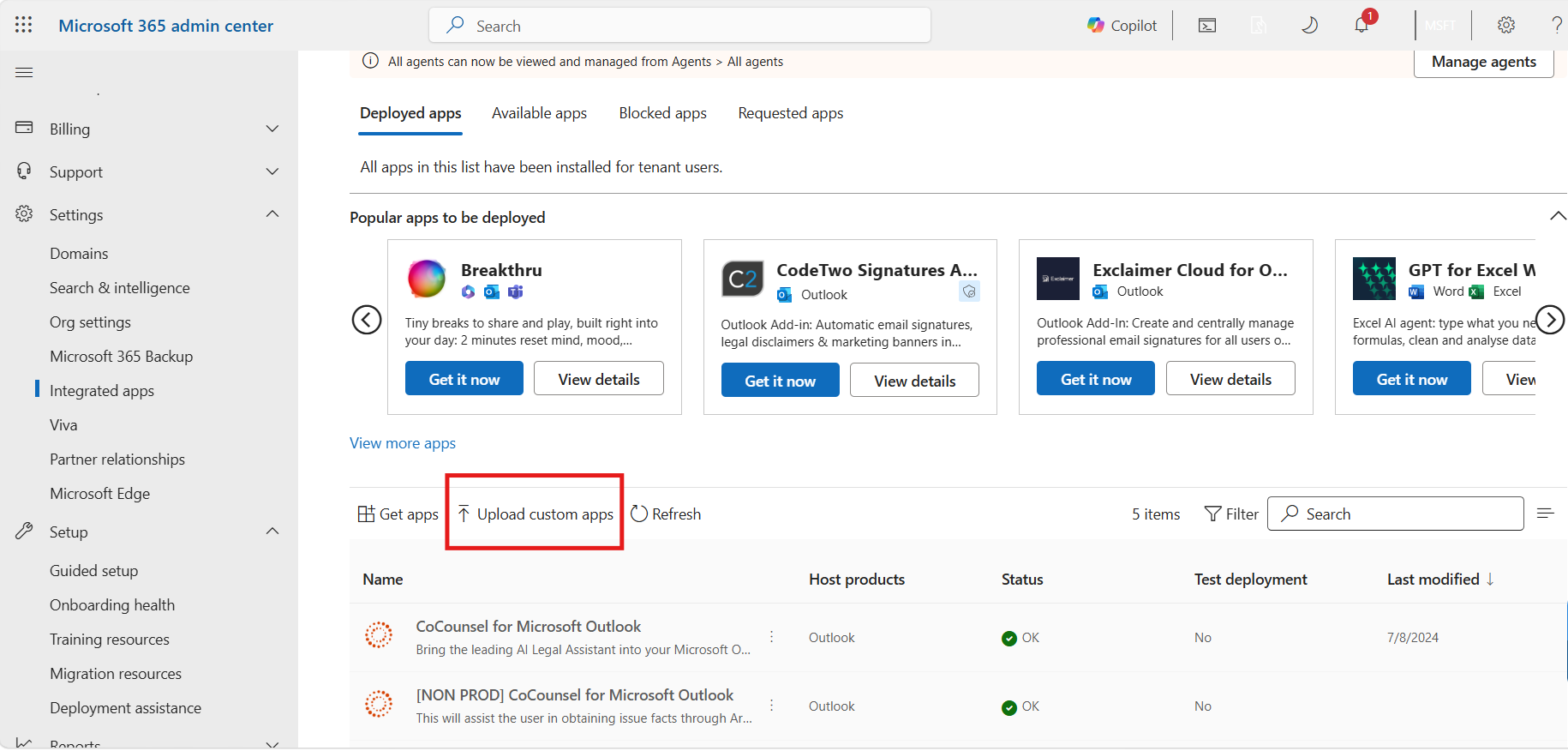

  2. Go to
    Settings
    >
    Integrated apps
    . Some tenants label this page
    Services & add-ins
    .
  3. Select
    Upload custom apps
    . Choose
    Office Add-in
     as the app type, then upload the Gov manifest file (.xml) provided by Thomson Reuters.
  4. Choose who the add-in is deployed to. Select
    Just me
     (admin test),
    Specific users/groups
    , or
    Entire organisation
    , to match the scope you decided on in the Prerequisites.
  5. Review the permissions and deploy the add-in. For the full list of permissions, see Grant tenant-wide admin consent later in this article.
  6. Open the deployment detail view - not just the status banner.
    The top-level status can read
    Completed
     while individual users within a group still failed. Select the deployment to check the per-user status before you consider the rollout finished.
  7. Have a test user fully sign out of Outlook and sign in again.
    Restarting the Outlook application alone is not enough. A full sign-out and sign-in lets Microsoft Entra ID issue a fresh token that reflects the new add-in assignment.
  8. Confirm that the add-in appears for that test user before you roll out further.
    Widen the scope only after a real test account can see and open CoCounsel for Microsoft Outlook (Gov) in the ribbon.
Deploy via the Microsoft Entra admin center
  1. Sign in to the Microsoft Entra admin center.
    Use your Government tenant's Microsoft Entra endpoint (for example, a
    .us
     variant of entra.microsoft.com), and sign in as a Cloud Application Administrator or Global Administrator.

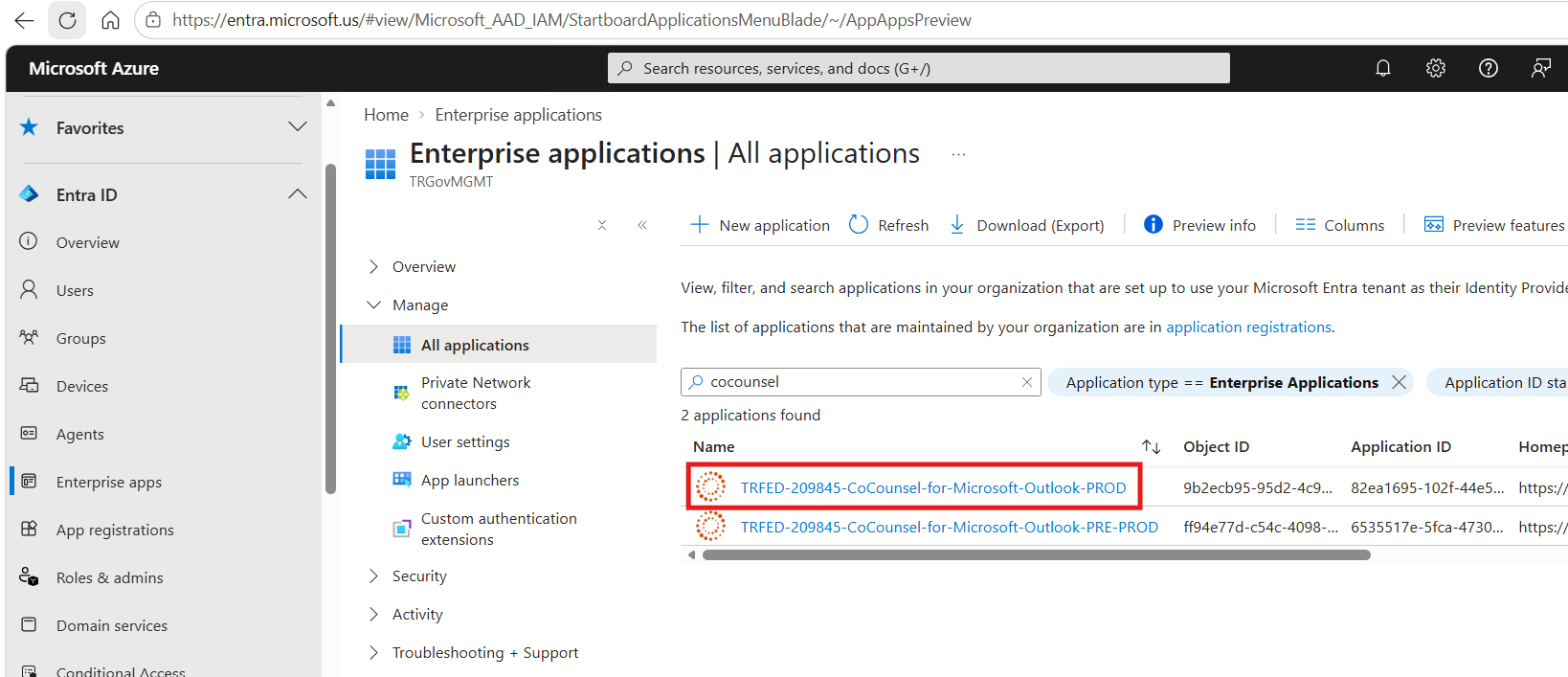

  2. Go to
    Identity
     >
    Applications
     >
    Enterprise applications
    .
    Search for
    CoCounsel
     to find the app. The production entry is named
    TRFED-209845-CoCounsel-for-Microsoft-Outlook-PROD
    .
  3. Use
    Manage
     >
    Properties
     and
    Users and groups
     to control who can access the app.
    To restrict sign-in to specific users or groups rather than the whole tenant, set Assignment required to Yes under Properties, and then assign users and groups. This is the Microsoft Entra ID equivalent of the scoping step in first (via the Microsoft 365 Admin Center) deployment method mentioned above.
  4. Deploy the manifest from the Microsoft 365 admin center or by using Exchange admin PowerShell.
    The Microsoft Entra admin center governs sign-in and permissions for the app. The manifest that puts the task pane into the Outlook ribbon is still uploaded through Integrated apps (via the Microsoft 365 Admin Center) or your Exchange Online management tooling.
In short,
Admin center
When to use
Microsoft 365 Admin Center
Deploy via
Settings
  >
Integrated apps
. The most common route for Exchange/M365 admins and the one Microsoft documents as its primary centralised-deployment experience.
Microsoft Entra Admin Center
Deploy and manage the resulting app registration from
Identity
  >
Applications
. Preferred by teams who already manage enterprise app access and Conditional Access from Entra.

Permissions

Grant tenant-wide admin consent
The add-in calls Microsoft Graph, on behalf of the signed-in user, to read the user's profile and their own mailbox. Rather than prompting every individual user to consent the first time they open the add-in, Thomson Reuters recommends that your administrator grants consent once, for the whole organisation.
What the app asks for
The following permissions are taken directly from the application's Microsoft Entra app registration (TRFED-209845-CoCounsel-for-Microsoft-Outlook-PROD).
Permission
Type
Description
Admin consent
email
Delegated
View users' email address
Not required
Mail.Read
Delegated
Read user mail
Not required
Mail.ReadWrite
Delegated
Read and write access to user mail
Not required
openid
Delegated
Sign users in
Not required
profile
Delegated
View users' basic profile
Not required
User.Read
Delegated
Sign in and read user profile
Not required
Cocounsel.Auth
Delegated
Access CoCounsel for Microsoft Outlook on behalf of the signed-in user
Required
All seven are delegated permissions, scoped to the signed-in user's own mailbox and profile. The app does not request application (tenant-wide-data) permissions, and does not request
Mail.Send
,
Contacts
,
Calendars
,
Sites
,
Files
, or
Teams
 scopes. Only
Cocounsel.Auth
 strictly requires admin consent. Granting consent for all seven permissions together in one step, as described in the following options, is simpler.
note
Granting tenant-wide admin consent requires a Global Administrator, Privileged Role Administrator, Cloud Application Administrator, or Application Administrator role in your tenant.
How to grant admin consent
As with deployment, Microsoft gives you more than one place to grant consent. Choose the option that your team already uses to manage app permissions.

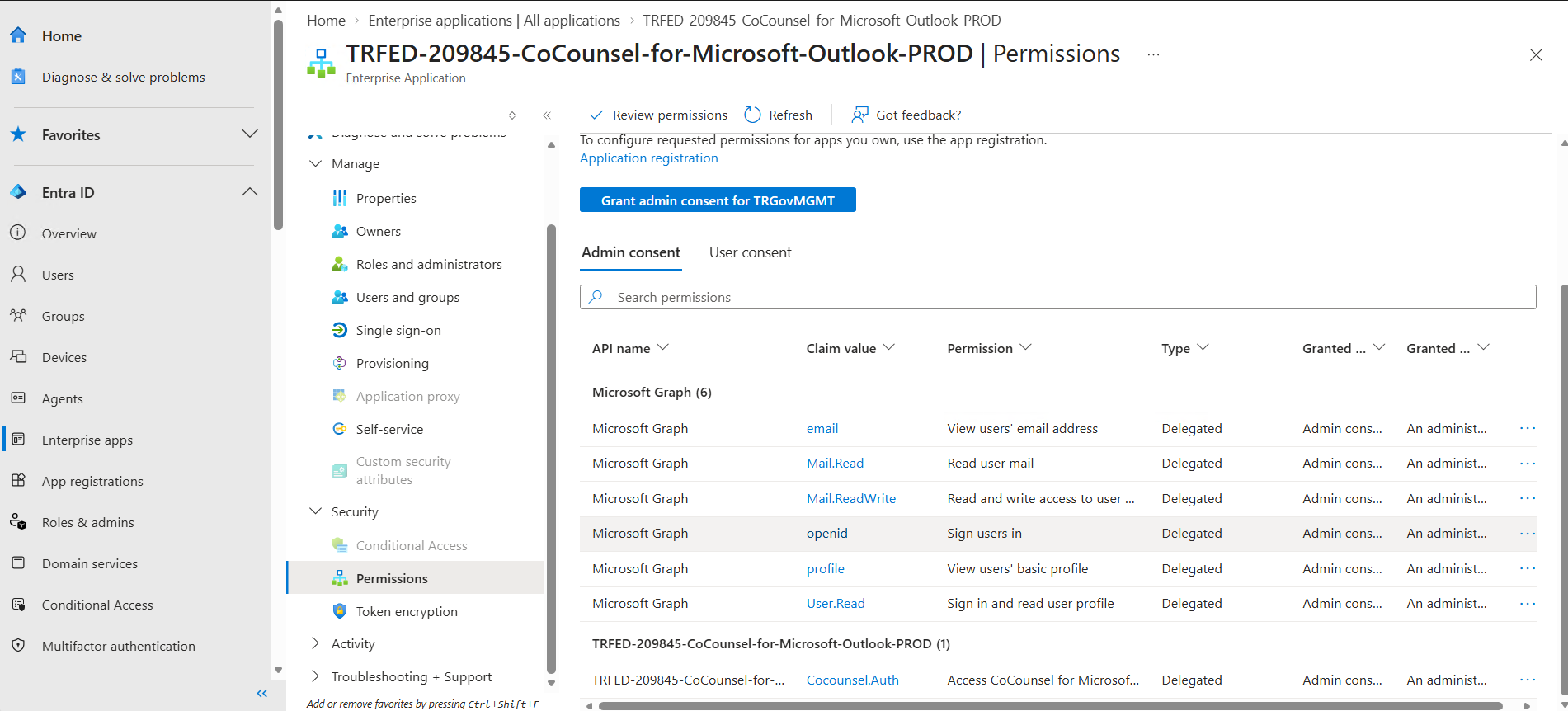

  1. In the Microsoft Entra admin center, go to
    Identity
     >
    Applications
     >
    Enterprise applications
    .
    Search for CoCounsel, and then select TRFED-209845-CoCounsel-for-Microsoft-Outlook-PROD. Under Security, select Permissions. Review the scopes, and then select Grant admin consent.

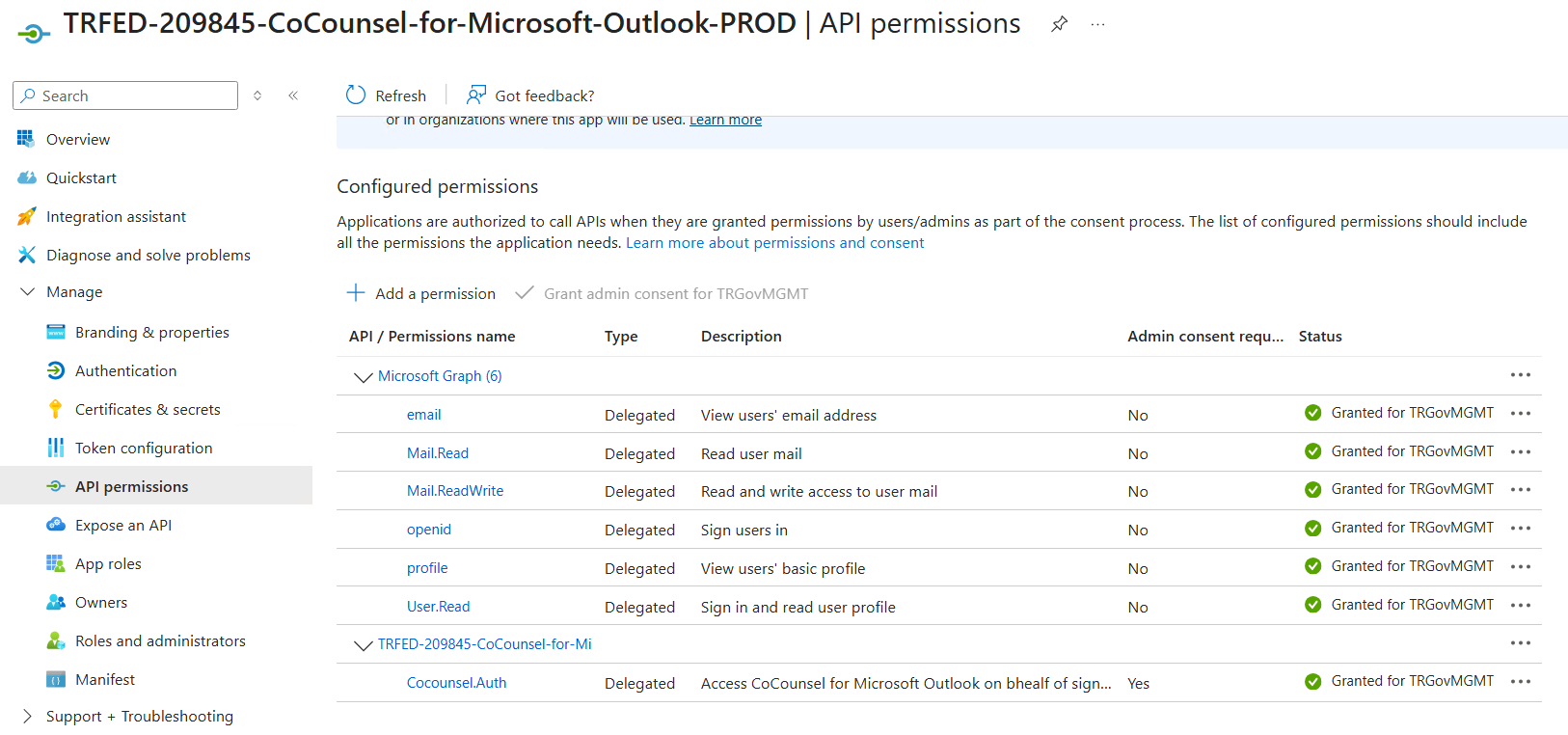

  2. App registrations pane
    In the Microsoft Entra admin center, go to
    Identity
     >
    Applications
     >
    App registrations
    , and then select TRFED-209845-CoCounsel-for-Microsoft-Outlook-PROD. Select API permissions. Review the scopes, and then select Grant admin consent.
  3. Direct link
    If you already know your Government tenant ID, an administrator can browse directly to the following URL, replacing {your-tenant-id} with your tenant ID:
    https://login.microsoftonline.us/{your-tenant-id}/adminconsent?client_id=82ea1695-102f-44e5-88cb-797e57b971b0
    Signing in there as an eligible admin and accepting the prompt has the same effect as above options. This is optional, the admin center steps above don't require your tenant ID at all.

Whitelist the application domain

CoCounsel for Microsoft Outlook (Gov) connects to one application endpoint over HTTPS. Allow that endpoint on every network path that your users' Outlook clients use.
important
Allow outbound HTTPS traffic to
imaappgov.thomsonreuters.com
 from every network that your users' Outlook clients connect through your corporate network, your VPN, and any secure web gateway (SWG) or proxy, including a cloud access security broker (CASB). If you don't, the add-in loads in Outlook but can't reach its service, and every action fails or hangs.
Add the following entry to your outbound allow list.
Setting
Value
Domain
imaappgov.thomsonreuters.com
Protocol and port
HTTPS (TCP 443) only
Purpose
The application endpoint that CoCounsel for Microsoft Outlook (Gov) connects to.
Where to add it
Your outbound proxy or secure web gateway allow list.
If this domain is blocked, the add-in loads in Outlook but can't reach its service, and every action fails or hangs.

Post-deployment and support

Allow time for the deployment to propagate
After you deploy the add-in through the Microsoft 365 admin center or the Microsoft Entra admin center, the admin experience typically displays a message that the change can take up to
24-72 hours
 to reach every account, up to 24 hours for a new deployment, and up to 72 hours for a change to an existing deployment (for example, widening the scope from a pilot group to the whole organisation). If a user does not see the add-in in the Outlook ribbon right away, propagation delay is the most common explanation. Allow the propagation window to pass, and have the user fully sign out of Outlook and sign in again, before you troubleshoot further.
Troubleshooting
If the add-in does not appear after the propagation window has passed and the deployment detail view shows success, work through the following steps in order.
  1. Check for a nested security group.
    Redeploy the add-in directly to 2-3 named users. If the add-in appears for the named users but not for the group, the issue is group resolution. Flatten the group, and then retry the deployment.
  2. Clear the add-in cache.
    Clear the cache for the specific Outlook client in use. Classic Outlook and new Outlook maintain separate caches, so check the client that your test user runs.
  3. Confirm that the user signed out and signed in again.
    Restarting Outlook alone does not force a new token. The user must fully sign out of Outlook and sign in again.
  4. If the add-in still does not appear for named users, escalate to Microsoft Support.
    This result points to a deployment propagation issue in Microsoft's service rather than to anything on the Thomson Reuters side. Escalate to Microsoft Support with the exact error text and your tenant ID. In parallel, Thomson Reuters can confirm that the manifest and the Gov app registrations are healthy.
Additionally, to request the Gov manifest file, or for help with any step in this process, contact your Thomson Reuters CoCounsel for Microsoft Outlook program team. Please include your Microsoft Entra tenant ID, your tenant name (GCC/GCC High/DoD), and the admin email you'll be deploying from, it speeds up getting you the correct manifest and app registration details.
