Canon DR-M260 with Capture Perfect 3.1

Use Capture Perfect 3.1 to create PDF files, which will be uploaded to 1040SCAN. After installing Capture Perfect 3.1, follow these steps.

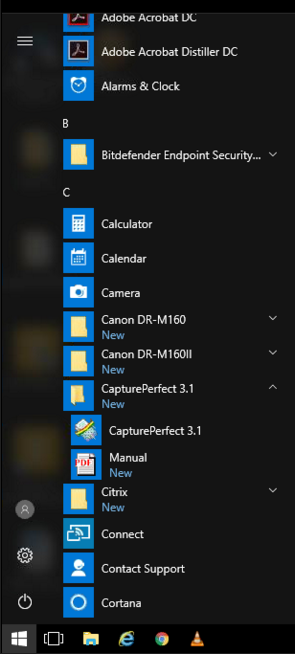

Open Capture Perfect 3.1 by selecting

Start
Programs
Capture Perfect 3.1
Capture Perfect 3.1

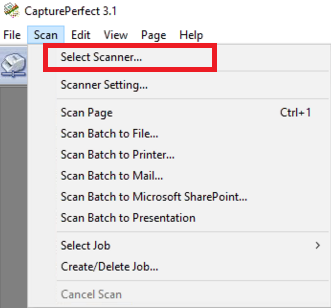

Select Scan
then Select Scanner
.

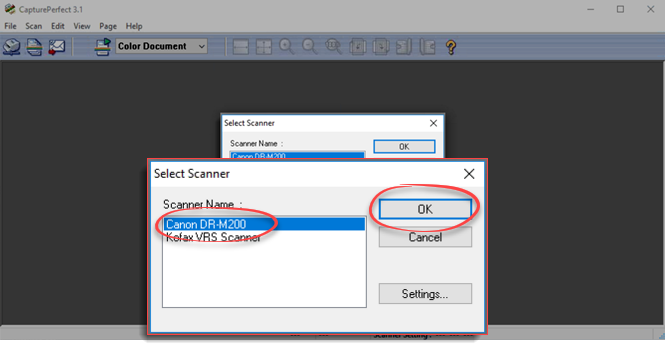

A window appears listing the Scanner Name
. Select Canon DR-M200
then OK
.

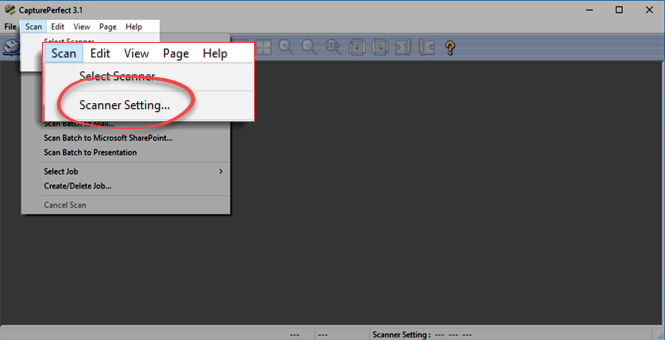

Select
Scan
then Scanner Setting
.

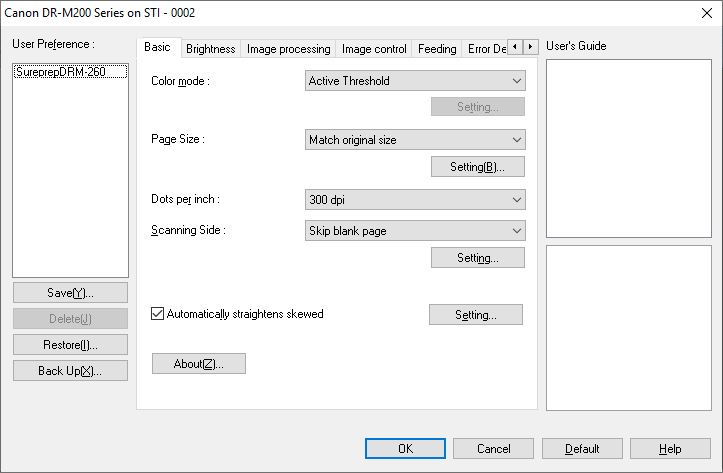

When the Canon DR-M200 Series on STI-0002
window appears, adjust the settings: Color mode:
Active Threshold Dots per inch:
300 dpi Page Size:
Match original size Scanning Side:
Skip blank page.

Configure your settings in the Canon DR-M200 Series on STI-0002 window

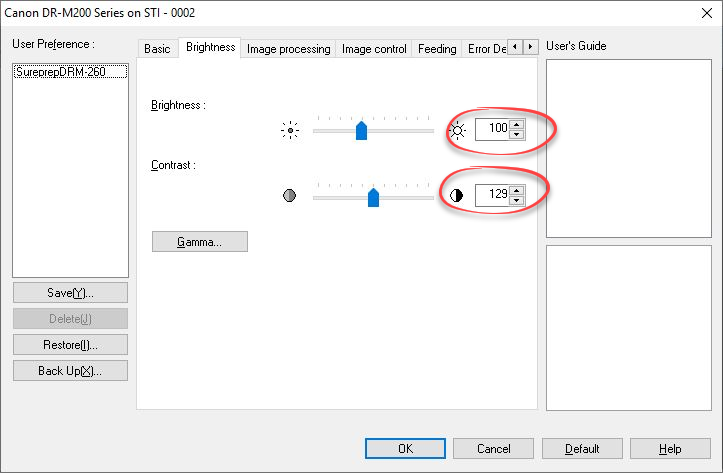

Select the Brightness
tab, then the Gamma
button. Brightness
: 100 Contrast
: 129

The Gamma Settings
window appears. Adjust the settings to the following and then OK
. Custom:
Uncheck the box to disable the Gamma setting then select OK
.

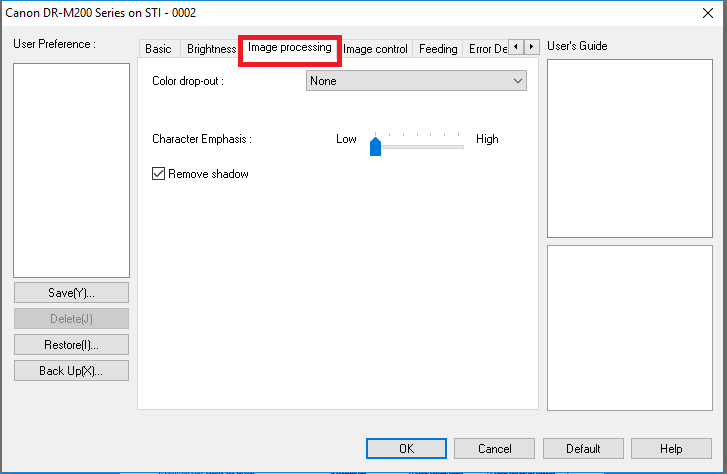

Select the Image processing
tab and adjust the settings to the following: Color drop-out:
None Character Emphasis:
Low Remove Shadow:
Check the box

Select the Image control
tab and adjust the settings to the following: Edge emphasis:
None Moire Reduction:
None Erase Dot:
Check the box Erase Notch
: Check the box Color unevenness reduction:
Check the box

Configure your settings in the Image Control tab

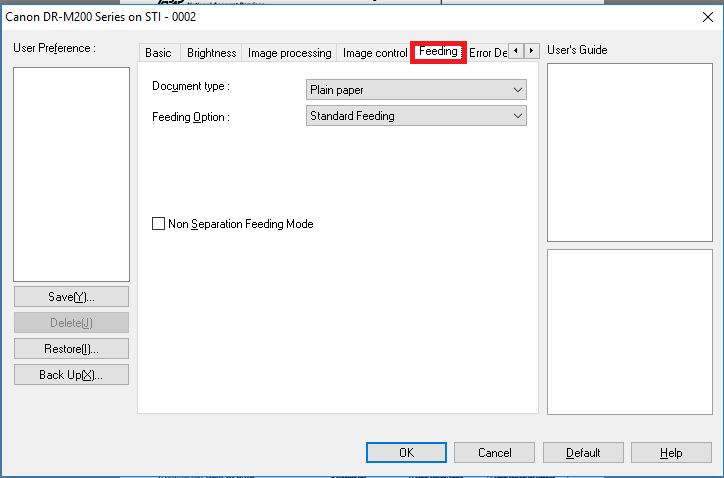

Select the Feeding
tab and adjust the settings to the following: Document type:
Plain paper Feeding Option:
Standard Feeding

Select the Error Detection
tab and adjust the settings to the following: Detect by Ultrasonic:
Check the box Skew Detection:
Check the box Paper Feed error detection:
Check the box

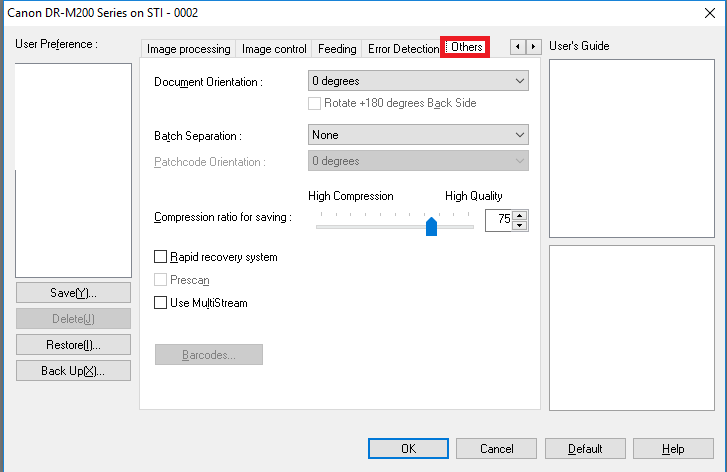

Select the Others
tab and adjust the settings to the following: Documentation Orientation:
0 degrees Batch Separation:
None
